Lighting PCB Terminal block

Lighting PCB Terminal block - SMD

SMD

PCB connector with push-in terminal SMD. Clamping range from 0.2 mm² to 0.75 mm² for solid and flexible wires easily detachable with release pin or by twisting and pulling.

Raw materials

- Insulating material: Polyamide with 30% of glass fiber.
- Insert: tin-plated copper / stainless steel.

Constructive characteristics

- Certificates: UL ÖVE

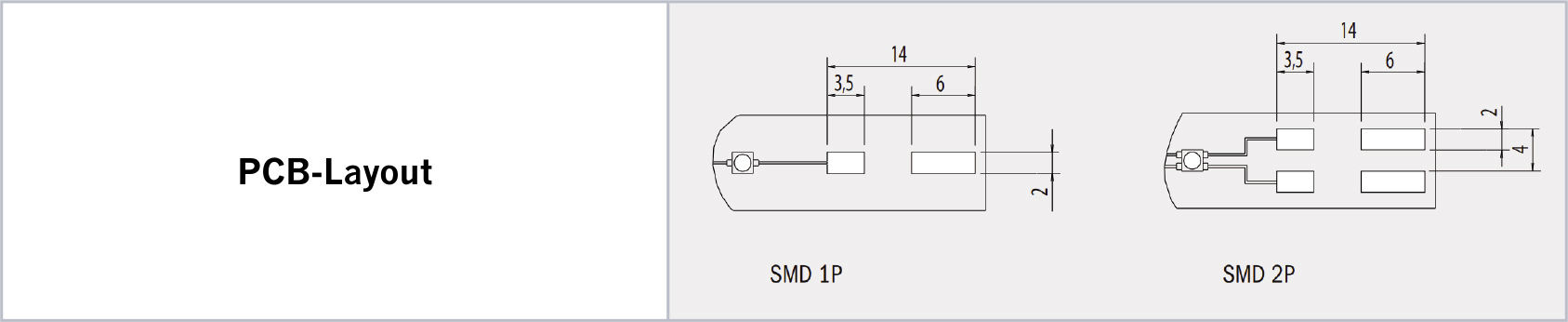

Serie SMD

For manual and automatic wiring.

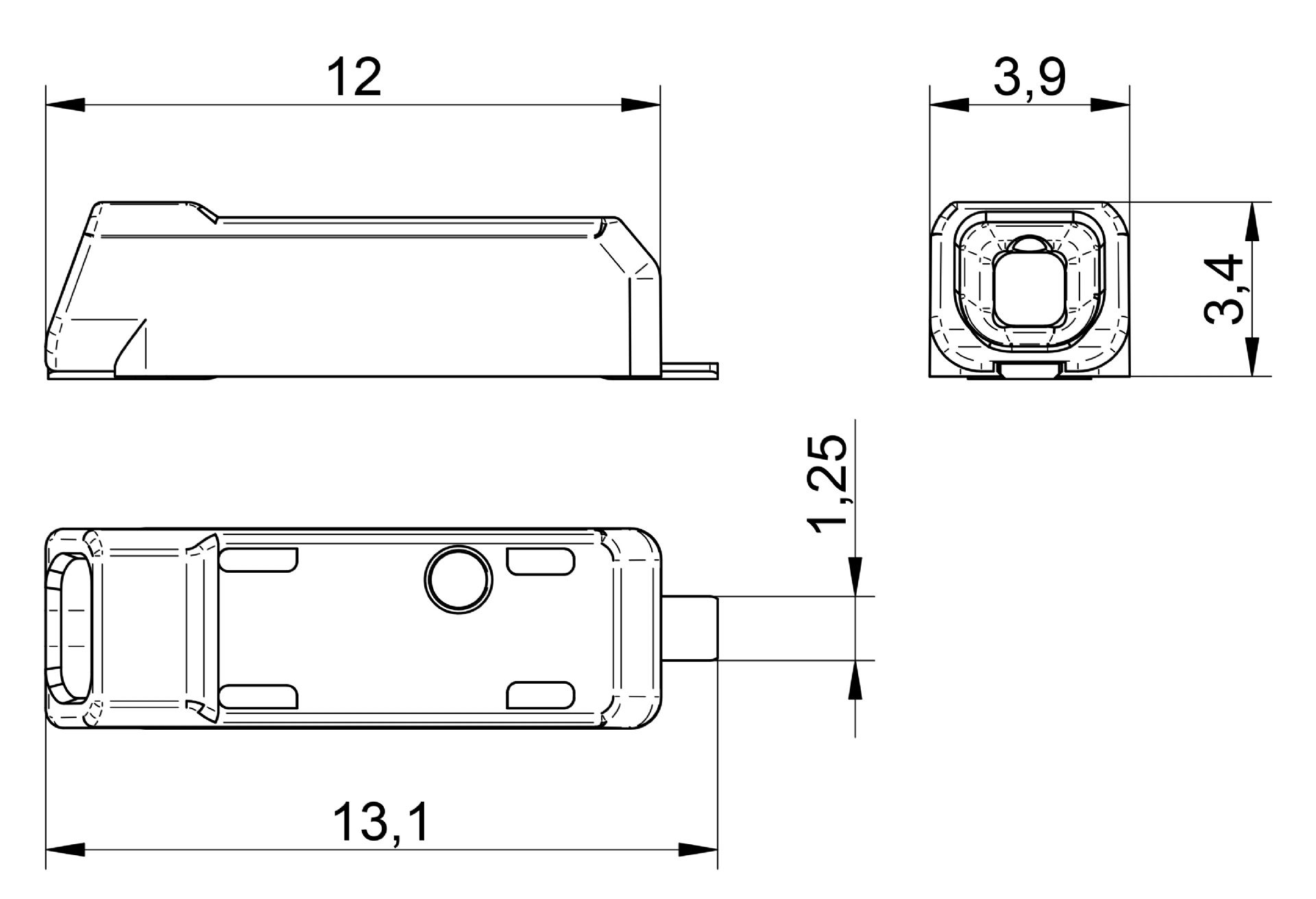

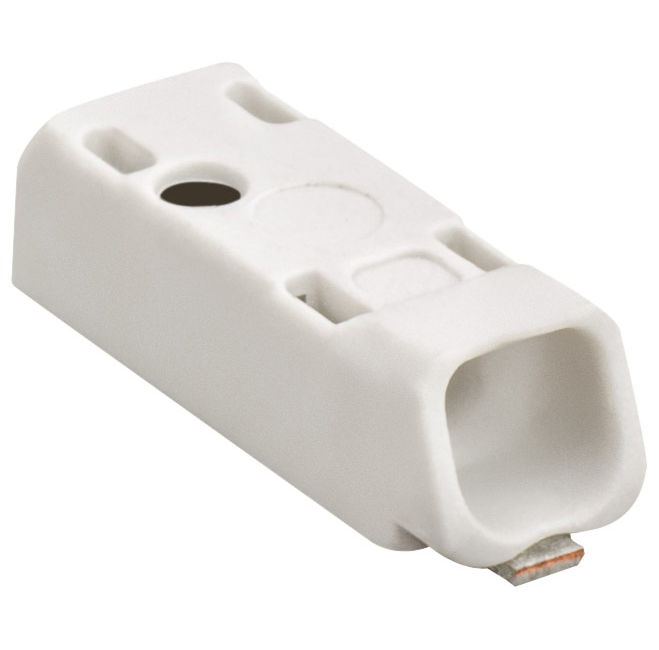

SMD 1P

SMD connector 1 pole

Connection capacity:

- Solid cable: 0,75 mm² / 0,2 mm² (AWG 20-18)

- Flexible cable: 0,75 mm² / 0,2 mm²

Voltage: 600V

Temperature: -40ºC+105ºC

Intensity: 6A

Poles: 1P

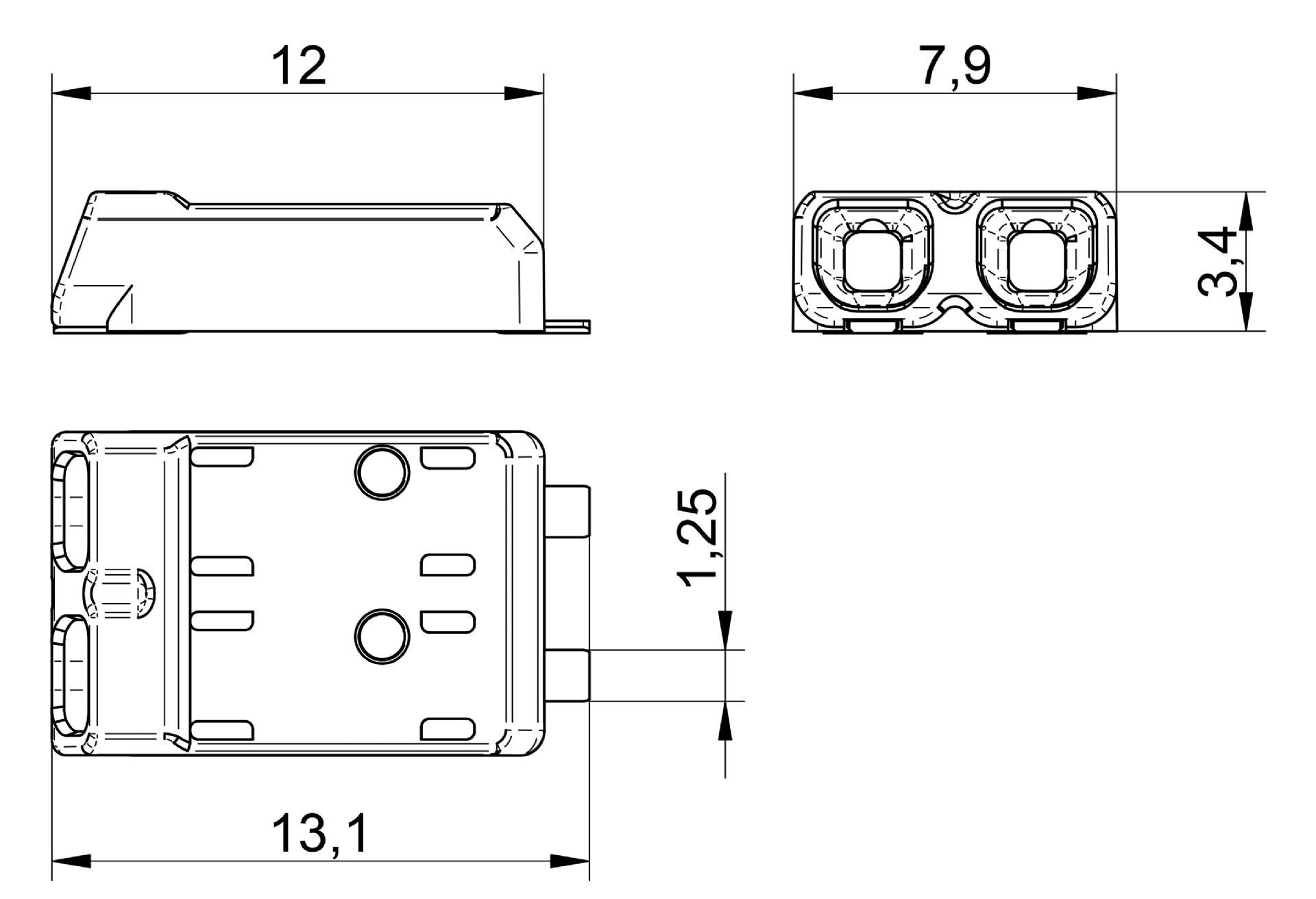

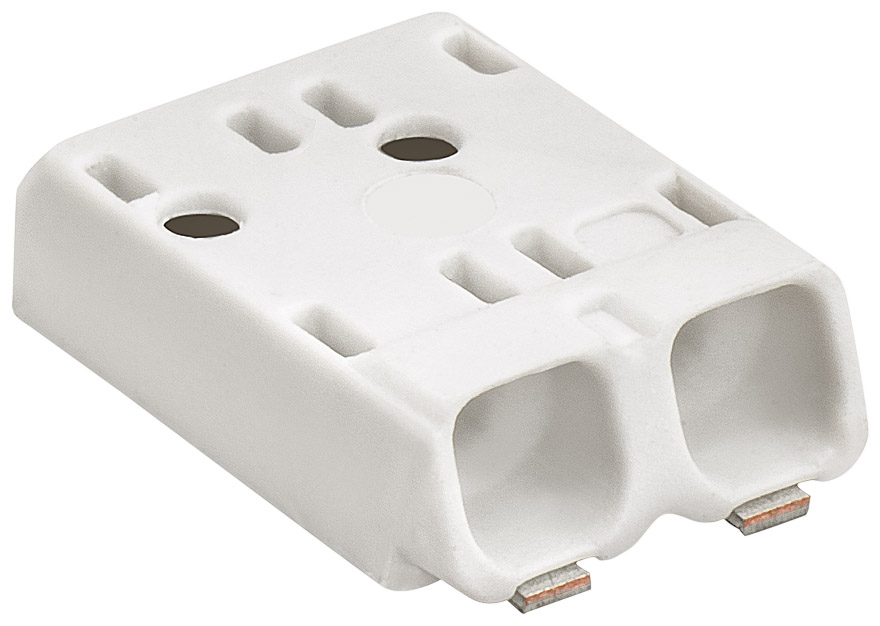

SMD 2P

SMD connector 2 poles

Connection capacity:

- Solid cable: 0,75 mm² / 0,2 mm² (AWG 20-18)

- Flexible cable: 0,75 mm² / 0,2 mm²

Voltage: 320V

Temperature: -40ºC+105ºC

Intensity: 6A

Poles: 2P
